• ENG LD001 LD 5000 CNC Router
ENG LD001 LD 5000 CNC Router
ENG LD001 LD 5000 CNC Router
  • SKU: 17400_1_131722

ENG LD001 LD 5000 CNC Router

Supplier: Masonlite
Min. Order: 1 Units
Country of Origin: United Arab Emirates
Currently Available at: United Arab Emirates

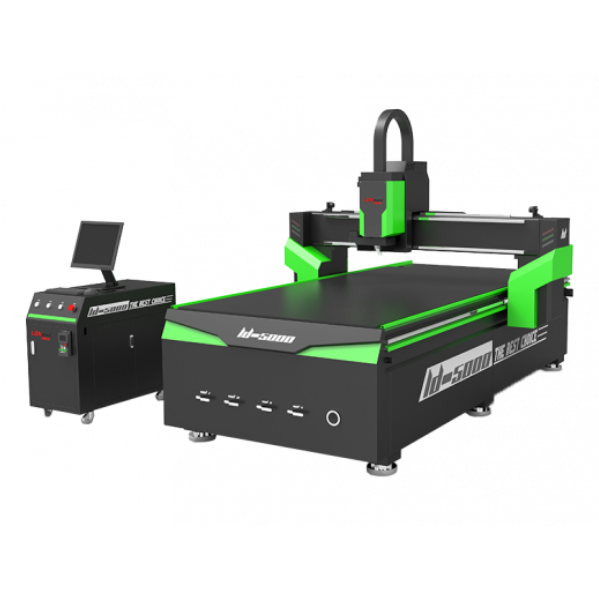

CNC  Router LD-5000 is a 6 KW spindle, this machinery is come with vacuum Table, Dust collector and Mist coolant. It is a full option machine used to cut Acrylic, wood, Aluminum, MDF etc.

Technical Specification :

 Working Area

 1300×2500×200mm

 Driving Mode

 YASKAWA Servo motor drive

 Control System

 NK105 G2 DSP system

 Structure

 Suction and pressure integrated platform

 X Y Z Transmission

 X,Y axis importe d grindi ng rack
 drive, Z axis screw drive

 Spindle Power

 HSD 6KW (Air cooling) Spindle

 Spindle Speed

 0-18000 rpm

 Repositioning Accuracy

 0.05mm

 Vacuum Pump Power

 7.5KW, 3P 380V / 50Hz(Air cooling)

 Guide

 Taiwan HIWIN

 Power Supply

 3P 380V / 50Hz,50A
With dust collec tor and mist coolant

General

MATERIALS Acrylic, Aluminum, Copper, Insulation Board, Abs Board, Pvc Board, Wood.
MACHINE BODY Quenching heat treatment ,precision machining of CNC machine tools.
Application Mini luminous characters, acrylic cutting, carving, chamfering, reached mirror effect. Processing acrylic panels (TV, DVD and other various acrylic panel ) on Wood furniture, cabinet doors, acrylic products, exhibition, plastic plate cutting.
